Laminated Glass Tread Building Curved Staircase With Stainless Steel Post Railing

Product Categories
Shenzhen Prima Construction Materials Co., Ltd.
Contact Now

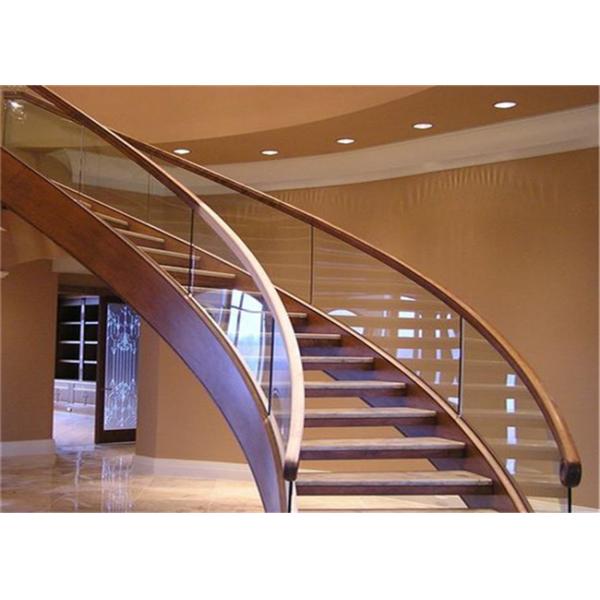

Laminated Glass Tread Building Curved Staircase With Stainless Steel Post Railing

  • 1
  • 2

Brand Name : PRIMA

Model Number : PRC-09

Certification : CE,AS/NZS2208,ANSIZ97.1

Place of Origin : Guangdong, China

MOQ : 1/piece

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 300 Sets per Month

Delivery Time : 40-45 days

Packaging Details : Ply-wood box

Material : Laminated glass

Application : Residential

Installation : DIY

Shape : Curved

Size : Customized

Product Name : Curved staircase

Finish : Clear

Contact Now

Laminated glass tread building curved staircase with stainless steel post railing

Features:

A curved staircase, often referred to as a helical staircase, leads users upstairs in a graceful flowing arc. Unlike spiral staircases, a curved staircase doesn’t require a fixed central column and frequently features two rolled stringers with treads attached between them. Due to the flexibility associated with curved stair design, this option is found in a variety of settings, from large commercial office spaces the private residences.

A variety of materials are used in curved staircase design, the vast majority of woods combine well with stainless steel, while concrete is also a popular choice for curved stair design. Curved stairs regularly feature handrails on both sides, which are usually formed from stainless steel or timber. Glass balustrades are another popular feature used to complement a curved staircase, allowing light to travel throughout a space.

Specification:

staircase Carbon Steel Stair Beam Square Beam /Mono Stringer 100*200*6mm+6mm Treads Support Plate
U Channel Stringer 300*(5+5)mm /300*(6+6)mm
Stringer 300*12mm/ 300*10mm

Straight Stair Sleeve keel/

Used Spiral Staircase Center Post

 108*4mm *108*6mm

Staircase Treads

 Laminated Glass

10+1.52+10mm For Straight Stair;

12+1.52+12mm For Spiral Stair
Solid Wood

30mm/50mm/60mm/100mm For Straight Stair;

38mm thickness Wood Treads For Spiral Stair
Wrought Iron 4mm thickness anti-slip plate
Stair Railing Tempered Glass 10mm/15mm/12mm tempered glass stair railing
Laminated Glass 6+1.14+6mm /8+1.14+8mm
304 Stainless Steel /316s.s Post 50.8mm/ 42.4mm/ 38mm/ 22mm Round Post /Customized
50*50mm/ 38*38mm Square Post Or Customized
6+6mm double plate/ 12mm single plate Flat Post
304s.s /316s.s Standoff Diameter 38mm/ 42mm/ 50.8mm
304s.s /316s.s Spigots 40*40*160mm /50*50*200mm Square Spigots/ Customized
42*160mm /48*160mm/ 50*160mm Round Spigots

304s.s /316s.s Handrail

Solid Wood / PVC Stair Handrail

 50.8mm/ 42.4mm/ 38mm Round Handrail / Customized
50*50mm/ 60*40mm Square Handrail / Customized
50*10*1.5mm Flat Handrail / Customized
304s.s /316s.s Accessories 4mm/6mm Cable / Wire Railing
Diameter 8mm Silid Rod Bar
12.7mm Hollow Tube

Laminated Glass Tread Building Curved Staircase With Stainless Steel Post Railing

Laminated Glass Tread Building Curved Staircase With Stainless Steel Post Railing
